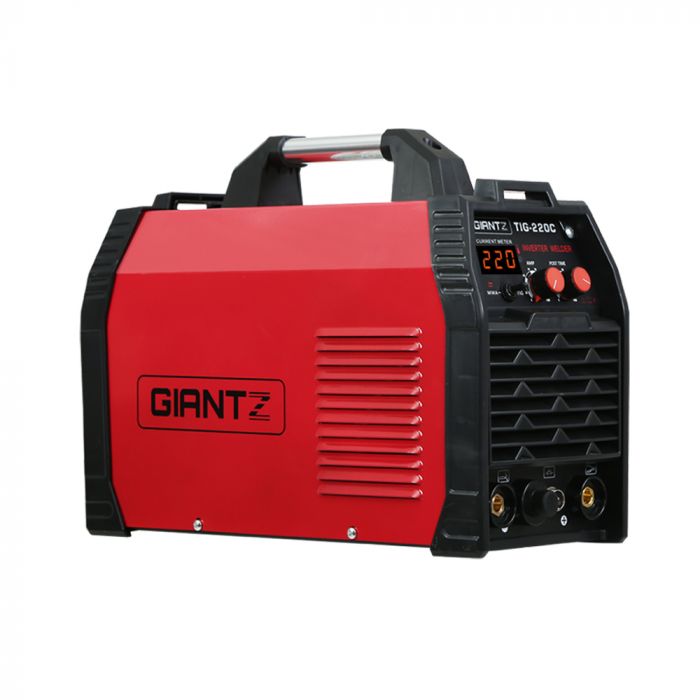

The Giantz Pro-series Welder offers professional quality TIG/MMA welding with results that matter. It features IGBT DC inverter technology that allows a huge increase in duty cycle, deep penetration and a smooth welded finish. The machine can handle an array of electrodes and rod sizes. The output current is adjustable between 15A and 220A to produce flawless TIG results with all kinds of metals including mild steel, stainless steel, carbon steel and even sheet metal. The advanced cooling system with its large fan and radiator also ensure that heat is dissipated easily for better welding performance and durability. Operating the machine is also enhanced with the digital display and user-friendly controls. Not least, safety is never taken for granted as the machine is protected from overloading current, overheating and dust and water protection. The compact machine is lightweight for easy handling and comes with a full range of accessories for hassle-free welding.

NOTE: This item comes with a 15A plug and requires a current converter adaptor for use with 10A sockets.

Features:

2-in-1 TIG/MMA Welder

Outstanding duty cycle

Super Stable arc force and post flow control

Compact and lightweight

IGBT inverter technology

Super stable DC inverter technology

Current stablisation and auto increase

Industry-standard DIN sockets

Adjustable output current range 15A to 220A

Outstanding 30,000 MTPF hours cooling

Overheating, over current, and over/under voltage protection

Works with a range of rod sizes

SAA, EMC, CE and C-Tick certified

Specifications:

Power Voltage: Single Phase 220V ±15%, 50Hz

Power Plug: 15A AU Standard

Output: TIG 15-220 Amps / 18V

MMA 20-220 Amps

Duty Cycle: TIG (Amps/Duty Cycle): 180A@ 60%, 220A@ 40%

MMA (Amps/Duty Cycle): 170A@60%, 220A @ 35%

Insulation Class: F

Shell Protection Grade: IP21

Pilot Arc Mode: HF

Air Hose Fitting: 1/4"

TIG and MMA Connections: Quick Connect Brass Fittings

Welding Electrodes: Up to 4.0mm

MMA Electrode Cable Length: 1.8m

Earth Clamp Cable Length: 1.2m

TIG torch Cable Length: 4m

Power Cord Length: 1.8m

Generator Recommended: 7.5kVA

Dimensions: 36cm x 16cm x 29cm

Product Weight: 6kg

Product Contents:

GIANTZ Inverter Welder x 1

TIG torch Lead x 1

Electrode Holder Lead x 1

Earth Clamp Lead x 1

Wire Brush x 1

Welding shield x 1

Collet and nozzles set x 1

Long Back Cap x 1

Torch pouch x 1

User Manual x 1
